적재적소에 맞는 전력제어 솔루션
차량전반의 전장제품을 개발한 풍부한 경험을 토대로 전자파에 강인하고 고효율의
전력제어 솔루션을 제공해드립니다.

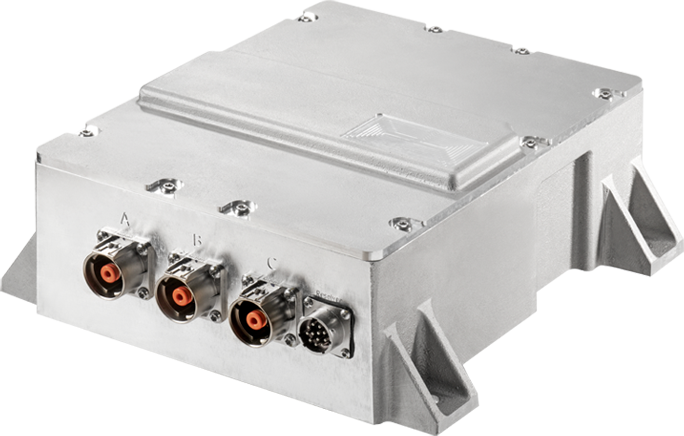

INV15K3MV-IL(xEV Inverter)
| ITEM | SPECIFICATION | NOTE |
|---|---|---|
| Power (Peak) | 15kW(20kW) | 3 Phase |
| Voltage | DC 250~400V | |
| Current | 80Arms | |
| Efficiency | 95% | IGBT |
| Dimension | 358x297x110mm | |
| Interface | 358x297x110mm | |
| Control Method | Speed, Torque | |
| Description | For commercial vehicle e-PTO motor control with water pump, blower, etc. (IP55) | |

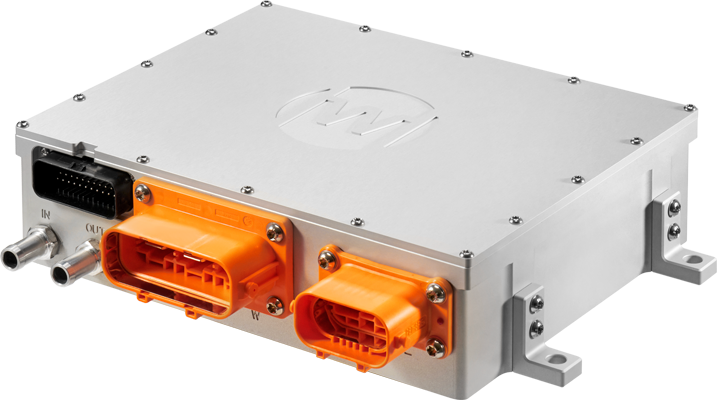

INV35K3HV-IL(xEV Inverter)
| ITEM | SPECIFICATION | NOTE |
|---|---|---|
| Power (Peak) | 30kW(50kW) | 3 Phase |
| Voltage | DC 600~800V | |
| Current | 180Arms | |
| Efficiency | 95% | IGBT |
| Dimension | 299x237x82mm | |
| Interface | Digital I/O, CAN | |
| Control Method | Speed, Torque | |
| Description | For commercial vehicle e-PTO motor control with water pump, blower, etc. (CISPR 25(CALSS 3), IP67) | |

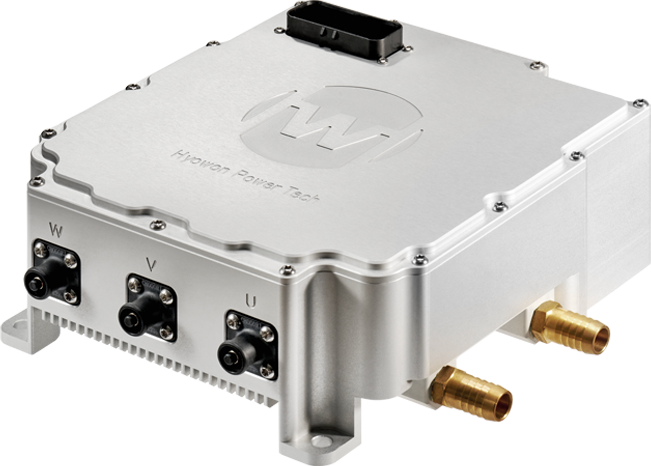

INV50K3HV-IL(xEV Inverter)
| ITEM | SPECIFICATION | NOTE |
|---|---|---|
| Power (Peak) | 50kW(70kW) | 3 Phase |
| Voltage | DC 450~750V | |
| Current | 200Arms | |
| Efficiency | 98% | SiC |
| Dimension | 250x265x104mm | 4.6kg |
| Interface | CAN, RS422 | |
| Control Method | Speed, Torque | |
| Description | For commercial vehicle traction motor control (IP67) | |

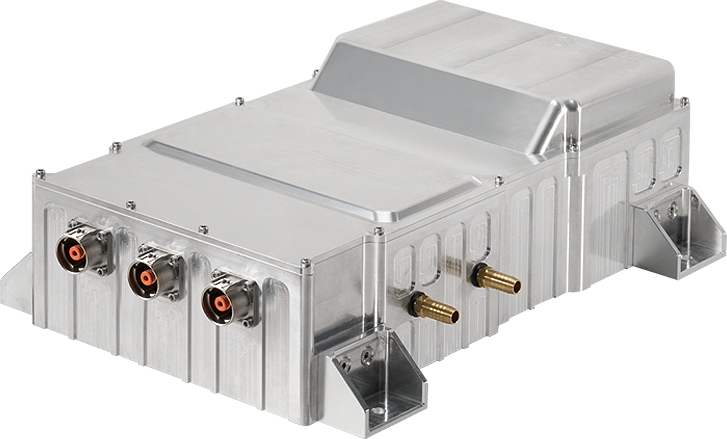

INV125K3HV-SL(xEV Inverter)
| ITEM | SPECIFICATION | NOTE |
|---|---|---|
| Power (Peak) | 125kW(150kW) | 3 Phase |
| Voltage | DC 600~800V | |
| Current | 300Arms | |
| Efficiency | 97% | IGBT |
| Dimension | 543x330x150mm | |
| Interface | CAN, RS422 | |
| Control Method | Speed, Torque | |
| Description | For commercial vehicle traction motor control with mixer, arm, etc. | |
